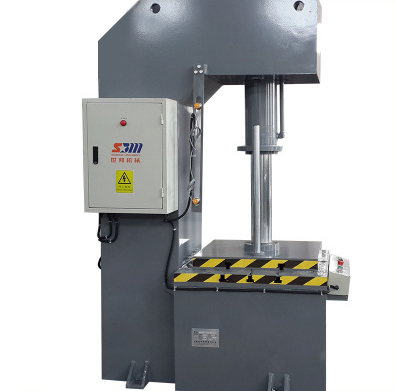

ZBJ-DD C-type hydraulic press machine

ZBJ-DD C-type hydraulic press machine

  • category:Single column hydraulic press machine

  • The number of clicks:
  • Release date:2018/05/18
  • Online inquiry
Details




Use end and characteristics:
The series hydraulic press is C-frame Single-pillar structure and the whole machine body is jointed with steel. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic cushion. The electric control system applies “PC” program controller with button central controlled to achieve adjusting, manual and semi-automatic operation. The series hydraulic press applies to techniques including the drawing, punching, bending, crimping, amendment, pushing mounting, cold and hot extrusion, etc of metal materials as well as powder and plastic products for press forming.

The operation is very convenient with C-frame single arm structure. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic base. Working press stroke can be adjustable within the specific range. The series hydraulic press applies to techniques including the drawing, bending, incusing, blanking, amendment, pushing mounting, etc of metal parts as well as the forming of general powder and abrasive products, plastic products and insulating materials for press forming.
Optional accessories:
●Accessorial worktable
●Precise straightening system
●Photo-electrical protection device
●Touch style industry screen
●Rate speed regulation system
●Hydraulic system heating
●Cooling device
●Ramming mixes device
●PLC Programmable Logic Controller







参数名称Parameter

单位Unit

ZBJ-DD-10

ZBJ-DD-16

ZBJ-DD-25

ZBJ-DD-40

ZBJ-DD-63

ZBJ-DD-100

ZBJ-DD-150

公称压力Nominal pressure

KN

160

160

250

400

630

1000

1500

滑块行程Stroke of Slide   block

mm

300

350

350

400

500

500

500

滑块下平面距工作台的最大距离

Max distance from bottom   surface of slide block to worktable

mm

500

550

600

700

800

800

800

工作台尺寸(左右×前后)Worktable   size(Right to left ×Front to back )

mm

600×450

650×500

650×500

700×550

800×650

800×700

900*900

液体最大工作压力Max work   pressure of liquid

Mpa

13

12

16

20

25

25

25

滑块下行速度Descent speed of   slide block

mm/s

40

48

48

33

32

27

27

滑块回程速度Return speed of   slide block

mm/s

50

70

70

65

50

40

50

喉深Throat depth

mm

250

300

260

320

350

350

400

外形尺寸(长×宽×高)Overall   Dimensions (length×width ×   height)

mm

1100×800
  ×1800

1100×850 ×2100

1200×830
  ×2400

1500×800
  ×2500

1600×1200 ×2600

1800×1400
  ×3000

1900*1500*

3100

电机功率Electric Power

kw

2.2

4

5.5

7.5

7.5

7.5

11.5

重量Weight

kg

1000

1300

1800

3500

5500

6500

7000
